GB Standard Gear Shaving Cutters with M2~M8

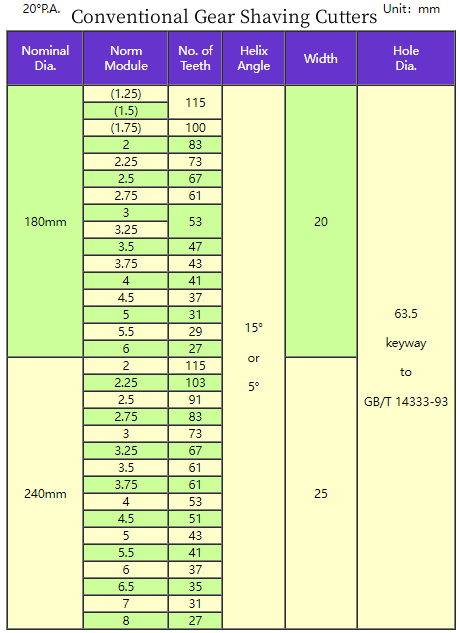

These shaving cutters are made according to profile of Chinese GB standard, the helix angle is 15° or 5°, nominal dia. 240mm, module range m2-m8
when ordering standard conventional shaving cutters, please tell us the hand and helix angle of the gear shaving tools.
